Part 3 - Rule Chains - People Counter Axis/ThingsBoard

5 minute read

In part 2 of this blog series, we configured the assets and relations between those which we in this part 3 will work with rule chains to create the data flow and data aggregation needed.

With the help of rule chains, we will create the functionality needed to create the floor/building data aggregation as well as calculate other statistics that we want the system to provide us with.

The rule chain will also calculate realtime per-floor and building occupancy numbers for us, which makes it possible to display it in different colors on a dashboard depending on the configured warning/maximum occupancy thresholds.

The rule chain which I have created for this consists of multiple parts. The main part is event-based, and this part is executed each time a device sends a data package to ThingsBoard. Then there also are some parts in the rule chain which is based on time intervals that execute data aggregation, resets count at 00:00 local time etc which are needed to maintain the correct counter data.

Event based flow

Let’s start with the rule chain which is event-based.

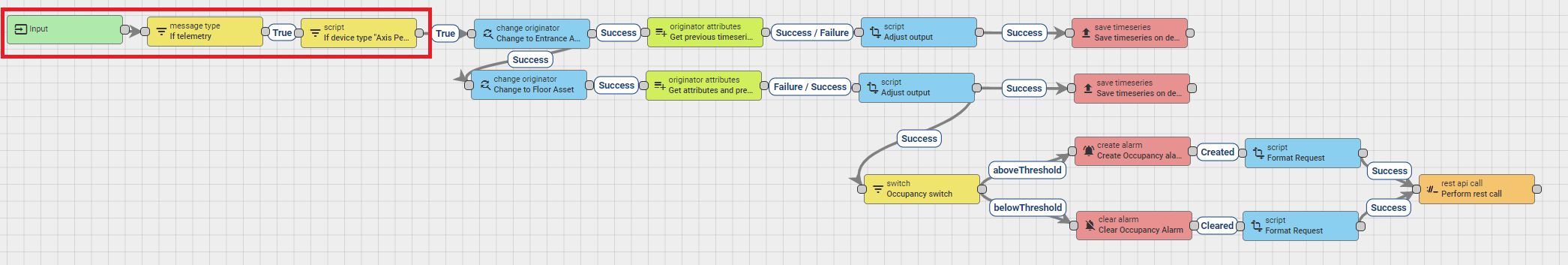

The first part of this event-based rule chain is a filter that validates that the data that triggers this rule cain is of type telemetry. The second node is to validate that the device type is what we expect, so that we do not try to run the next steps on other devices: Event part1

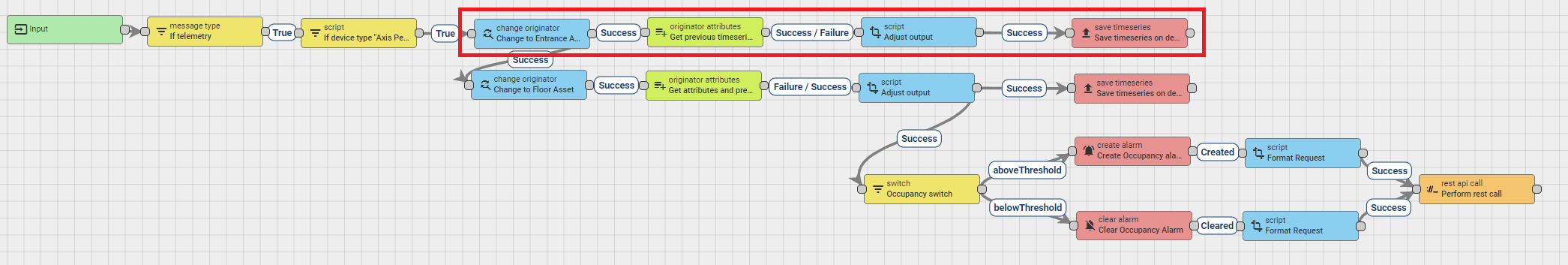

In the second part of this event-based rule chain we start to add some data. What we do here is to create the data needed to later be able to calculate how many percent of total floor In/Outs that uses this particular Entrance:

  • Change the originator from the device to the parent entrance asset.
  • From the entrance asset, get the previous totalInOutCount time series data.
  • Run a script that adds the current totalInOutCount to the previous totalInOutCount
  • Save this to the database.

Event part2

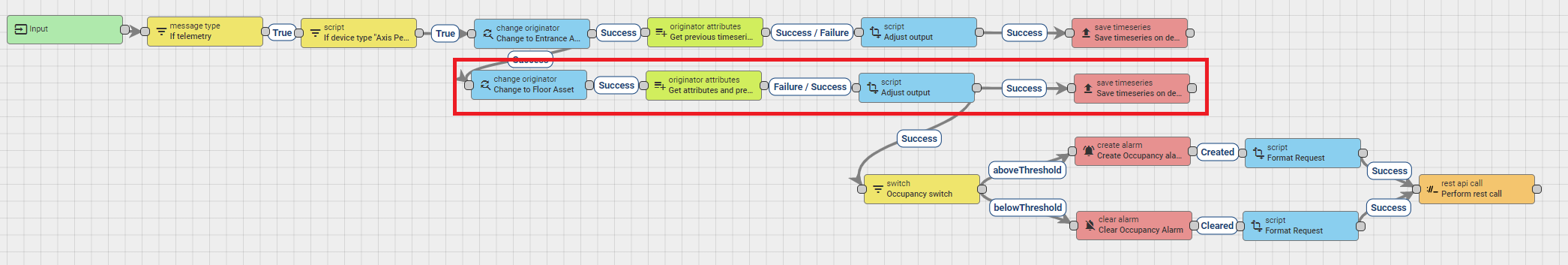

In the third part we do:

  • We start by changing the originator from the entrance we changed to in step 2, to the floor based on the asset relations we have created earlier.
  • From the floor, we gather both attributes and previous telemetry. We collect maxOccupancy which is configured on the floor level that tells the maximum number of allowed visitors for each floor. We also collect currentOccupancy, totalVisitors and totalInOutCount from the floor asset.
  • In the script node, we adjust the output by taking the previous telemetry and incrementing/decrementing those depending on if the camera counted In (1) or Out (-1). We also make sure that if the currentOccupancy is 0 and the camera sends “-1”, the currentOccupancy should remain 0, and not be -1 on the floor level.
  • Next, we save this to the database.

Event part3

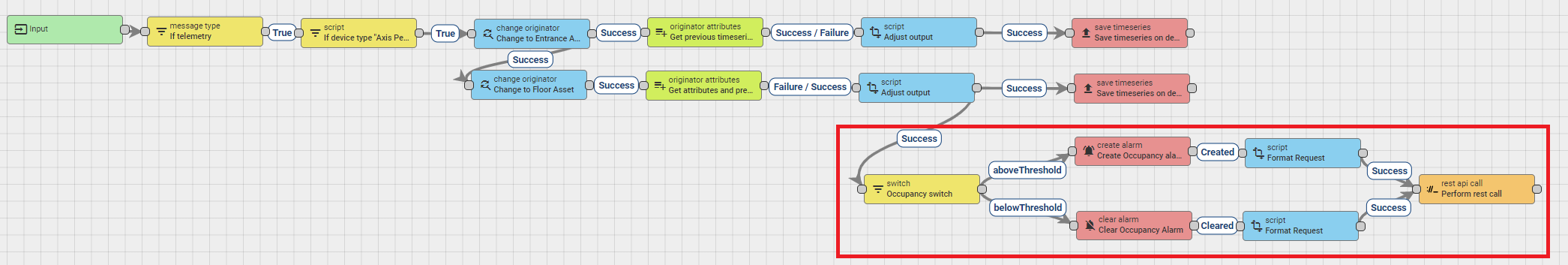

The last step in this rule chain is used to perform an action of the currentOccupancy exceeds the maxOccupancy which is configured on each floor asset. If the occupancy exceeds the maximum allowed number, then we can trigger an event like sending an email or REST API call to an external system to create an incident or other things.

  • In the first node, we check if the currentOccupancy is below or above maxOccupancy.
  • If the currentOccupancy is above the configured threshold then we create a alarm within ThingsBoard, we then have a script node which formats the body to be used in the REST API Call against the external service, and then perform the actual REST API call.
  • If the currentOccupancy is below the configured threshold, then we will clear the existing alarm in ThingsBoard. We also format the REST body in the script node so that it thru the REST API call can notify the external system that the currentOccupancy now is below maxOccupancy.

Event part4

Interval based flows

Apart from the event-based activities above, we also have some things that we need to trigger to run on a interval to make the solution work.

Floor > Building aggregation

The event-based rule chain describes above updates the data on the entrance level and on the floor level in realtime. However, we also want the floor occupancy and totalVisitors to be aggregated to the building level, so that we can see on the building level what the total occupancy and visitor numbers are when combing the data from all floors.

To do this, I have created a aggregate latest node which runs every 60 seconds that gets all floors related to a building and then sums the currentOccupancy and totalVisitors for all floors and then saves it to the building asset:

Building aggregation

Calculate entrance utilization in percent

In this blog post we have one main and one secondary entrance for each floor. We know that people are entering/leaving the floor using any of those two. But how many percent in/outs do we have on the main entrance VS the secondary entrance? - These nodes are executed every 60 seconds to calculate the entranceUtilization percent for us.

  • First, we split this job to run on all floor assets in the building.
  • Then we split this job to run on all entrance assets in each floor.
  • For each entrance asset, we then get the corresponding totalInOutCount from the floor.
  • In the “originator attributes” we get the totalInOutCount for this particular entrance asset.
  • And in the script node, we now can calculate each entrance entranceUtilizationPercent by taking the entrance totalInOutCount and device it with the floor totalInOutCount.

Entrance Utilization

Reset all counters to zero

If you remember from part one of this series, the cameras in the MQTT configuration that we are using sends either count: 1 or count: -1. This means that we now want ThingsBoard to reset all counters that we have incremented back to 0 on a specific time related to the local time zone, which in this case is configured on the building asset to be 22:00 which is 00:00 in UTC time, which the ThingsBoard rule chain uses.

The nodes from left to right:

  • Every 300 seconds the generator node is executed.
  • Originator attributes is read from the building asset to get the clearPeopleCountTimeUTC attribute, which in our case is set to “2200” (UTC) which translates to 00:00 in my local time.
  • The script node then checks if the current time is within 10 minutes from what was specified in the clearPeopleCountTimeUTC and if not, then it stops here.
  • We then duplicate this message from the building to the floors and all entrances related to this building.
  • Next, we verify if totalVisitors exists.
  • And lastly, we write 0 for currentOccupancy, totalVisitors and totalInOutCount as time series data into the database.

Reset counters

Note: If we were using the builtin functionality in the camera to send the data on a 15 minute interval, then the camera would reset it’s counters at 00:00 automatically, but in this blog post we are using Events instead since we wanted a real time solution.


In this part we added all the intelligence to the solution to add the functionality and calculate the data which we need in part 4 where we will build a dashboard for monitoring.
